The Simplex TrueAlarm 4098-9733 Heat Detector is designed to support reliable fire detection in commercial buildings, industrial facilities, warehouses, healthcare environments, and other locations where heat monitoring is essential for life safety. As part of the Simplex TrueAlarm range, it is intended for use with compatible fire alarm systems to help detect abnormal heat conditions and support centralized monitoring. Heat detectors can be particularly useful in areas where dust, fumes, or other environmental factors may limit the suitability of smoke detection.
Simplex TrueAlarm 4098-9733 Heat Detector Supplier in Saudi ArabiaProduct Description

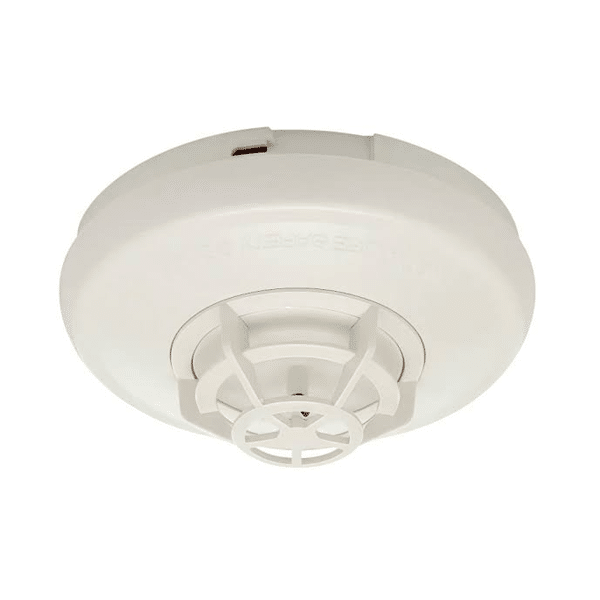

The Simplex TrueAlarm 4098-9733 Heat Detector is an intelligent, addressable analog heat sensor designed to provide dependable fire detection in commercial buildings, industrial facilities, warehouses, healthcare environments, and other locations where heat sensing is preferred over smoke detection. It uses a low-thermal-mass sensing element to measure local temperature changes and digitally transmit sensor data to compatible Simplex fire alarm control panels via IDNet or MAPNET II addressable communications. The detector supports rate-compensated fixed-temperature sensing, with selectable rate-of-rise detection at 15°F (8.3°C) or 20°F (11.1°C) per minute, allowing the control panel to evaluate both temperature thresholds and rapid temperature increases. Fixed-temperature alarm settings are programmable at 135°F (57.2°C) or 155°F (68°C), helping adapt detection to the intended application.
The 4098-9733 also features self-restoring operation, meaning the sensor can return to its normal state after the temperature drops, subject to system conditions. When supported by the connected control panel, it can be configured for utility temperature monitoring to help identify temperature extremes or potential HVAC issues. Its addressable design supports centralized device supervision and integration with compatible Simplex TrueAlarm systems, including supported 4007ES, 4010ES, 4100ES, and 4100U configurations. The sensor is specified for an operating temperature range of 32°F to 122°F (0°C to 50°C), with base selection and installation requirements determined by the system design. Always verify the manufacturer’s datasheet, compatible base, panel support, and applicable fire safety requirements before installation or replacement.
Features of Simplex TrueAlarm 4098-9733 Heat DetectorKey Advantages
Addressable Analog Heat Sensing: Measures local temperature and communicates sensor data to compatible Simplex fire alarm control panels.
Rate-Compensated Detection: Uses a thermistor sensing element designed to respond accurately to temperature changes.
Selectable Fixed-Temperature Settings: Supports programmable alarm thresholds of 135°F (57.2°C) or 155°F (68°C).
Rate-of-Rise Detection: Supports selectable detection rates of 15°F (8.3°C) or 20°F (11.1°C) per minute.
Configurable Detection Modes: Allows fixed-temperature detection to operate with or without rate-of-rise sensing.
Self-Restoring Operation: Returns to its normal state when temperature conditions recover, subject to system operation.
IDNet and MAPNET II Communications: Transmits digital sensor information through compatible two-wire addressable systems.
Utility Temperature Monitoring: Can monitor temperature extremes for applications such as freeze warnings or HVAC fault indication, where supported by the control panel.
Low Thermal Mass: Supports quick and accurate measurement of local temperature changes.
Compatible Control Panel Integration: Designed for supported Simplex TrueAlarm fire alarm control units.
Sensor Status Indication: Compatible sensor bases provide LED indications for communication, alarm, or trouble conditions.
Magnetic Functional Testing: Supports functional testing using the appropriate magnetic test method.
EMI/RFI Protection: Electronics are designed to help resist electromagnetic and radio-frequency interference.
Flexible Mounting Options: Supports ceiling or wall mounting when installed with an approved compatible base.
Multiple Base Options: Compatible system bases may provide remote LED indicator outputs, relay functions, sounder options, or communications isolation, depending on the selected base.
Industrial, commercial, oil & gas, chemical, and HSE teams across Riyadh, Jeddah, Dammam, Dhahran, Al Khobar, and Al Jubail can specify the Simplex TrueAlarm 4098-9733 Heat Detector for reliable heat detection and integration with compatible Simplex fire alarm systems. Featuring addressable analog sensing, selectable fixed-temperature thresholds, and rate-of-rise detection, it supports fire safety requirements across industrial facilities, commercial buildings, and critical life-safety environments.
Specifications of Simplex TrueAlarm 4098-9733 Heat DetectorDemonstration
Specification
Details
Brand
Simplex
Product Series
TrueAlarm
Model Number
4098-9733
Detector Type
Addressable analog heat sensor
Sensing Technology
Thermistor-based temperature sensing
Detection Modes
Fixed-temperature and rate-of-rise
Fixed-Temperature Settings
135°F (57°C) or 155°F (68°C)
Rate-of-Rise Settings
15°F (8.3°C) or 20°F (11.1°C) per minute
Communication Protocol
IDNet or MAPNET II
Operating Temperature
32°F to 122°F (0°C to 50°C)
Humidity Range
10%–95% RH, non-condensing
Power Supply
Supplied through compatible addressable sensor base and system wiring
Sensor Base
Compatible Simplex TrueAlarm addressable base; confirm exact base model
Monitoring
Sensor data and status monitoring through compatible control panel
Installation
Ceiling or wall mounting, subject to approved installation requirements
Compatible Systems
Selected Simplex TrueAlarm fire alarm control panels; verify model compatibility
Typical Applications
Commercial buildings, industrial facilities, warehouses, and other approved environments
Simplex TrueAlarm 4098-9733 Heat Detector Related Products/AccessoriesExplore Compatible Accessories and Related Products
Product / Accessory
Description
Simplex 4098-9792 Standard Sensor Base
Standard white mounting base compatible with the 4098-9733 heat sensor.
Simplex 4098-9776 Standard Sensor Base
Black standard mounting base for compatible TrueAlarm sensors.
Simplex 4098-9789 Sensor Base
White base with connections for a remote LED alarm indicator or unsupervised relay.
Simplex 4098-9775 Sensor Base
Black base with connections for a remote LED alarm indicator or unsupervised relay.
Simplex 4098-9791 Supervised Relay Base
White sensor base supporting a compatible supervised remote relay and optional indicator or unsupervised relay connections.
Simplex 4098-9780 Supervised Relay Base
Base supporting a compatible supervised relay and optional indicator or unsupervised relay connections.
Simplex 2098-9737 Supervised Relay
Relay accessory designed for use with the 4098-9791 base.
Simplex 4098-9860 Supervised Relay
Relay accessory designed for use with the 4098-9780 base.
Simplex 2098-9808 Remote LED Alarm Indicator
Remote red LED indicator for compatible sensor bases.
Simplex 4098-9822 Unsupervised Relay
Relay accessory for compatible bases; mounts in the base electrical box.
Simplex 4098-9832 Adapter Plate
Adapter plate for specified surface or semi-flush electrical-box mounting arrangements.
Compatible Simplex Fire Alarm Control Panel
Supports system communication and monitoring when the panel and addressable circuit are compatible with the 4098-9733 sensor.
Where can I buy the Simplex TrueAlarm 4098-9733 Heat Detector in Saudi Arabia?
You can contact AED Arabia for sourcing assistance with the Simplex TrueAlarm 4098-9733 Heat Detector. Submit your project requirements through the AED Arabia contact page to request a quotation.
Does AED Arabia supply Simplex detectors for industrial facilities?
You can inquire about sourcing Simplex TrueAlarm heat detectors for suitable industrial applications, subject to environmental requirements, system compatibility, and product availability.
Can AED Arabia supply the Simplex 4098-9733 for bulk orders?
AED Arabia can assist with bulk sourcing inquiries for commercial and industrial fire alarm projects. Confirm quantities, configuration, and availability when requesting a quotation.
What is the price of the Simplex 4098-9733 Heat Detector?
The price depends on the required quantity, configuration, selected accessories, and sourcing conditions. Contact AED Arabia for a project-specific quotation.
Does AED Arabia provide quotations for contractors and system integrators?
You can submit a quotation request for contractor, consultant, system integrator, and project procurement requirements. Include the part number, quantity, project location, and any required technical documentation.
What is the Simplex TrueAlarm 4098-9733 Heat Detector used for?
The 4098-9733 is an addressable analog heat sensor designed to detect temperature conditions associated with potential fire events. It is used in compatible Simplex fire alarm systems in suitable commercial and industrial environments.
Does AED Arabia supply compatible Simplex sensor bases?
You can inquire about compatible TrueAlarm sensor bases, including standard bases and selected relay-base configurations, subject to availability and compatibility verification.
Which sensor base is compatible with the Simplex 4098-9733?
Compatible base options include the 4098-9792 standard base, 4098-9776 black standard base, and selected option bases such as the 4098-9789 and 4098-9791. Confirm the appropriate base for the required installation.
Can the Simplex 4098-9733 be supplied to Riyadh, Jeddah, or Dammam?
Customers can contact AED Arabia to discuss sourcing and delivery options for projects in Riyadh, Jeddah, Dammam, Dhahran, Al Khobar, and other locations. Delivery coverage and lead times must be confirmed for each order.
Can I request a quotation for multiple Simplex detector models?
Yes. Submit your required part numbers and quantities together to request a consolidated quotation for your procurement requirements.
How do I request a quotation for the Simplex TrueAlarm 4098-9733 Heat Detector from AED Arabia?
Visit the AED Arabia contact page and provide the required quantity, compatible panel details, preferred base, project location, and delivery requirements. This helps the supplier assess your sourcing request and prepare a suitable quotation.
Simplex TrueAlarm 4098-9733 Heat Detector in Saudi ArabiaRequest for Bulk Quotation
Looking to buy the Simplex TrueAlarm 4098-9733 Heat Detector at competitive prices for industrial facilities, construction projects, oil & gas operations, petrochemical plants, commercial buildings, or HSE and fire-safety projects in Saudi Arabia? AED Arabia provides fast quotations, competitive pricing, and reliable supply support for organizations across Riyadh, Jeddah, Dammam, Dhahran, Al Khobar, and Al Jubail. Companies and procurement teams searching for the best Simplex TrueAlarm 4098-9733 Heat Detector in Saudi Arabia, bulk fire alarm system procurement, or a trusted Simplex supplier can contact our team for expert assistance, competitive quotations, and fast delivery across KSA.
We Serve:
Industrial facilities and manufacturing companies across Saudi Arabia
Construction companies and project contractors in Riyadh and Jeddah
Oil & gas and petrochemical facilities in Dhahran and Al Jubail
Commercial buildings, offices, hotels, and warehouses
Corporate HSE, fire-safety, and facility management teams in Al Khobar and Dammam
Hospitals, laboratories, schools, and critical infrastructure projects
Simplex TrueAlarm 4098-9733 Heat Detector Part Numbers / Available ConfigurationsOrdering Information
SKU / Part Number
Product / Configuration
4098-9733
TrueAlarm addressable thermal heat sensor head (Frost White, standard configuration).
4098-9733-IND
TrueAlarm addressable thermal heat sensor head (White, India assembled).
GSA4098-9733
TrueAlarm addressable thermal heat sensor head (White, USA government procurement version).
4098-9733E
E-Series TrueAlarm addressable thermal heat sensor head (Sealed version for high-humidity environments).
4098-9778
TrueAlarm addressable thermal heat sensor head (Black finish version).
4098-9734
High-Temperature addressable heat sensor head (White, rated for fixed thresholds up to 190°F / 88°C).
