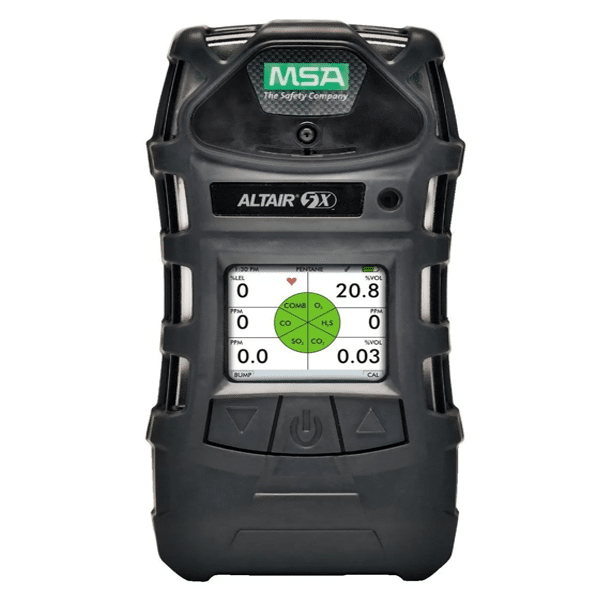

The MSA ALTAIR 5X Gas Detector is designed to measure up to six gases simultaneously, including natural gas. It is now available with an integrated PID (Photoionization Detector) sensor, enabling effective detection of volatile organic compounds (VOCs), making it suitable for a wide range of industrial applications.
TheMSA ALTAIR 5X Gas Detector is designed to measure up to six gases simultaneously, including natural gas. It is now available with an integrated PID (Photoionization Detector) sensor, enabling effective detection of volatile organic compounds (VOCs), making it suitable for a wide range of industrial applications.
Equipped with advanced MSA XCell Sensor Technology, the MSA ALTAIR 5X delivers rapid response times, improved accuracy and stability, and an extended sensor lifespan. These features not only enhance safety and performance but also reduce maintenance costs and provide long-term savings over the life of the device.
Features of MSA ALTAIR 5X Multigas Detector
Multi-Gas Detection Capability
Can monitor up to six gases simultaneously depending on sensor configuration
MSA XCell® sensors for fast response, high accuracy, and long-term stability
Typical sensor life greater than 4 years for many common sensors
Sensor response times typically under 15 seconds for most gases
Integrated Pump and Sampling
Built-in integral pump for reliable gas sampling without external attachments
Suitable for remote sampling through lines and probes
Rugged Design and Durability
Durable overmolded housing designed for industrial use
Survives 10-foot (3 m) drops onto concrete
IP65 rated for dust and water protection
Fast Calibration and Bump Testing
Industry-first 60-second span calibration for common gas configurations
Rapid bump test (~10 seconds) for efficient field use
MotionAlert and InstantAlert Safety Features
MotionAlert™ detects if the user becomes immobile
InstantAlert™ allows manual alarm activation to notify others of hazardous conditions
Display and User Interface
High-contrast color or monochrome display for clear readings
Large, glove-friendly buttons and customizable display settings
Multi-language interface options available
Data Logging and Connectivity
Built-in data and event logging for safety record-keeping
Compatible with MSA LINK™ software and GALAXY® GX2 Test System
Bluetooth connectivity supported on newer models
Alarm Systems
Audible alarm >95 dB
Ultra-bright visual alarms
Vibration alarm standard for noisy environments
Alerts integrated with MotionAlert and InstantAlert for enhanced situational awareness
Power and Runtime
Rechargeable Li-ion battery with long runtime suitable for full shifts
Dual-power options including replaceable batteries on certain configurations
Warranty and Serviceability
Standard manufacturer warranty varies with sensor type and region (commonly 3 years)
End-of-sensor-life warning helps plan maintenance and reduce downtime
Specifications of MSA ALTAIR 5X Multigas Detector
Brand
MSA
Drop Test
10 feet
Housing
Rugged rubberized armor
Weight
1 lb (without IR sensor)
Dimensions (L x W x D)
6.69” H x 3.49” W x 1.79” D without belt clip (without IR sensor)
Audible Alarm
>95 dB typical
Visual Alarm
2 ultra-bright LEDs on top
Vibrating Alarm
Standard
MotionAlert & InstantAlert
Standard
Display
High-contrast monochrome or color display
Backlight
Adjustable time-out
Battery
Rechargeable Li-ion or AA alkaline
Run Time
20 hrs @ room temperature
Charging Time
<= 6 hours
Operating Temperature
–20 °C to +50 °C
Short Period Operation
–40 °C to +50 °C
Humidity
15-90% RH non-condensing
Ingress Protection
IP65
Data Log
Adjustable 200 hrs minimum
Event Log
Standard 1000 events
Standard Warranty
3 years on CO, H2S, LEL, O2, SO2, and IR sensors;
2 years on NH3, Cl2 sensors;
1 year on other sensors
Typical Gas Detection Options of MSA ALTAIR 5X
Oxygen (O₂) – Monitors oxygen deficiency or enrichment in work environments.
Combustible Gases (LEL) – Detects flammable gas concentrations to prevent explosions.
Carbon Monoxide (CO) – Toxic gas produced from combustion and industrial processes.
Hydrogen Sulfide (H₂S) – Toxic and flammable gas, common in oil, gas, and wastewater industries.
Sulfur Dioxide (SO₂) – Produced by burning sulfur-containing fuels or chemical processes.
Carbon Dioxide (CO₂) – Monitors accumulation of CO₂ in confined spaces or industrial environments.
Ammonia (NH₃) – Found in refrigeration, chemical plants, and fertilizer operations.
Chlorine (Cl₂) – Toxic gas used in water treatment and chemical manufacturing.
Volatile Organic Compounds (VOCs) – Optional PID sensor for detecting organic solvents and chemical vapors.
Applications of MSA ALTAIR 5X Multigas Detector
Emergency Response Provides rapid detection of toxic and combustible gases to protect first responders during chemical spills, gas leaks, or industrial incidents.
Welding Operations Monitors exposure to gases such as CO and H₂S generated during welding, cutting, and hot work, ensuring worker safety in confined or ventilated areas.
Confined Space Entry Detects hazardous gases in tanks, vessels, tunnels, and other enclosed spaces, ensuring safe entry and continuous monitoring during operations.
Turnarounds & Plant Maintenance Ideal for monitoring gas hazards during plant shutdowns, maintenance, and inspection activities in refineries, chemical plants, and industrial facilities.
Firefighting Operations Provides real-time gas detection in fire and post-fire environments, helping protect firefighters from toxic gases and oxygen-deficient atmospheres.
Additional Information
Part Number
ALTAIR 5X
Usually ships in
2-3 Days
Manufacturer
MSA Safety
Downloadable
MSA ALTAIR 5X Gas Detector
MSA ALTAIR 5X Multigas Detector Datasheet
