The Simplex 4090-9007 Signal Individual Addressable Module (IAM) is designed to provide an addressable interface for remote notification appliance circuit (NAC) control and supervision in compatible Simplex fire alarm systems. Using IDNet communication, it supports selective signaling applications for compatible horns, strobes, and other notification appliances. Its supervised output, compact enclosure, and addressable control capabilities make it suitable for commercial buildings, industrial facilities, and other installations requiring distributed fire alarm notification.
Simplex 4090-9007 Individual Addressable Module Supplier in Saudi ArabiaProduct Description
The Simplex 4090-9007 Signal IAM interfaces with compatible Simplex fire alarm control panels through the IDNet addressable communication circuit. The module receives its operating power and communications through the addressable loop, while its notification appliance circuit uses a separate compatible signal source, such as a nominal 24 VDC NAC supply or a compatible 25 VRMS or 70.7 VRMS audio source. This arrangement enables the control panel to manage a remote signaling branch through an individual addressable point without the module itself supplying the power required by connected notification appliances.
Designed for supervised notification applications, the 4090-9007 supports specified Class A or Class B NAC configurations, subject to the manufacturer’s wiring instructions. Its output supports up to 0.5 A for compatible special-application or regulated 24 VDC appliances, or specified speaker loads using compatible audio sources. The module includes screw-terminal connections and a communication-indicating LED and mounts in a suitable 4-inch square electrical box. Correct installation requires verification of panel compatibility, software revision, signal source, appliance compatibility, circuit supervision, and allowable voltage drop.

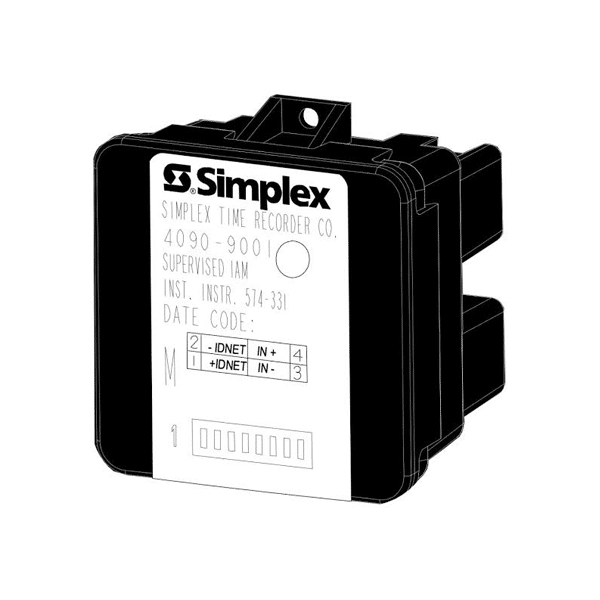

AED Arabia supplies fire alarm and life safety equipment for projects across Saudi Arabia, including the Simplex 4090-9001 Individual Addressable Module (IAM) , Simplex 4090-9007 Individual Addressable Module & Simplex 4090-9002 Addressable Relay Module designed to monitor compatible dry-contact devices and integrate with supported Simplex addressable fire alarm systems. For pricing, bulk orders, or project procurement in Riyadh, Jeddah, Dammam, Al Khobar, Dhahran, and Al Jubail, contact AED Arabia to request a quotation, verify control panel and communication protocol compatibility, and confirm product availability and delivery options across Saudi Arabia (KSA).
Features of Simplex 4090-9007 Individual Addressable ModuleKey Advantages
Individual Addressable Interface: Provides an individually identified signaling point on a compatible Simplex IDNet system.
IDNet Communication: Communicates with compatible fire alarm control panels through the addressable loop.
Remote NAC Control: Controls a remote notification appliance circuit through the module’s signaling interface.
NAC Circuit Supervision: Supports supervision of the connected notification branch in approved configurations.
Selective Signaling: Enables notification in designated areas according to programmed system logic.
Separate Signal Source: Uses a compatible NAC power source or audio source to power connected signaling appliances.
Audio Circuit Compatibility: Supports compatible 25 VRMS or 70.7 VRMS audio sources within the stated output rating.
0.5 A Output Rating: Provides a rated output of 0.5 A for the specified compatible appliance or speaker applications.
Class A and Class B Wiring: Supports documented NAC wiring arrangements when installed according to manufacturer instructions.
Addressable Status Reporting: Allows compatible control equipment to monitor the module’s status.
Communication Status LED: Provides a visual indication of IDNet communication activity.
Screw-Terminal Connections: Accommodates specified field wiring from 18 to 12 AWG.
Compact Installation Format: Mounts in a suitable 4-inch square electrical box.
Protective Circuit Design: Uses relay contacts to isolate signal input and output during supervision; signal-source presence and supply-side wiring require separate consideration.
Industrial, commercial, oil & gas, chemical, and HSE teams across Riyadh, Jeddah, Dammam, Dhahran, Al Khobar, and Al Jubail can specify the Simplex 4090-9007 Individual Addressable Module (IAM) for monitoring compatible dry-contact devices in Simplex fire alarm systems. With addressable communication, supervised input monitoring, and alarm or trouble reporting, it supports fire protection applications across industrial facilities and commercial buildings.
Specifications of Simplex 4090-9007 Individual Addressable ModuleDemonstration
Specification
Details
Brand
Simplex
Model Number
4090-9007
Product Type
Signal Individual Addressable Module (Signal IAM)
Primary Function
Remote notification appliance circuit control and supervision
Communication Protocol
IDNet
Addressing
One address
IDNet Channel Loading
Two unit loads; reduces available loop capacity by two addresses
Module Power
Supplied through IDNet communications
NAC Input Options
Nominal 24 VDC from a compatible control panel NAC or NAC extender
Audio Input Options
Compatible 25 VRMS or 70.7 VRMS audio source
Output Rating – DC Appliances
0.5 A for specified special-application or regulated 24 VDC appliances
Output Rating – 25 VRMS Audio
0.5 A (12.5 W)
Output Rating – 70.7 VRMS Audio
0.5 A (35 W)
NAC Circuit Class
Class A or Class B, subject to approved wiring configuration
Class B NAC End-of-Line Resistor
10 kΩ, ½ W; Simplex 4081-9008
Wire Connection Type
Screw terminals
Supported Wire Gauge
18–12 AWG (0.82–3.31 mm²)
IDNet Distance Reference
Up to 2,500 ft (762 m) from the control panel
Total IDNet Wiring Distance Reference
Up to 10,000 ft (3,048 m), including T-taps on Class B wiring, subject to panel requirements
Dimensions (W × H × D)
Approximately 4 × 4⅛ × 1¼ in (102 × 105 × 32 mm)
Mounting
Suitable 4-inch square electrical box
Operating Temperature
32°F to 120°F (0°C to 49°C), indoor operation
Humidity
Up to 93% RH at 100°F (38°C)
Appliance Compatibility
Compatible appliances and signal sources must be verified against Simplex documentation
Control Panel Compatibility
Supported Simplex IDNet panels, subject to model and software revision
Simplex 4090-9007 Individual Addressable Module Related Products/AccessoriesExplore Compatible Accessories and Related Products
Product / Accessory
Description
Simplex 4090-9801 Trim Plate
Optional trim plate with LED viewing window for a semi-flush-mounted box. Includes mounting screws.
Simplex 4090-9802 Trim Plate
Optional trim plate for a surface-mounted box.
Simplex 4090-9116 IDNet Communications Isolator
Isolator that may be required for specific IDNet loop connections involving the Signal IAM.
Simplex 4090-9122 IDNet Isolator2
Alternative IDNet isolator for supported system configurations.
Simplex 4098-9766 IDNet Isolator2 Base
Isolator base for compatible installations where specified by the system design.
Simplex 4081-9008 End-of-Line Resistor
10 kΩ, ½ W resistor for the 4090-9007 Class B NAC output.
Simplex 2081-9044 Overvoltage Protector
Protection device for specified IDNet or DC wiring applications; required where wiring exits and enters a building, according to applicable instructions.
Compatible NAC Power Supply or NAC Extender
Provides the separate nominal 24 VDC signal source required for supported DC notification appliances.
Compatible Simplex Audio Source
Provides the specified 25 VRMS or 70.7 VRMS source for supported speaker applications.
Compatible Horns and Strobes
Notification appliances selected according to the module’s ratings and the system’s compatibility requirements.
Where can I buy the Simplex 4090-9007 Signal IAM in Saudi Arabia?
Contact AED Arabia to inquire about sourcing the Simplex 4090-9007 Signal IAM. Submit your required quantity and project location to request a quotation and confirm availability.
Looking for a Simplex 4090-9007 supplier for an industrial project?
AED Arabia accepts sourcing inquiries for fire alarm and life safety equipment. Share your project specifications, required quantity, and delivery location to discuss supply options.
Can I buy the Simplex 4090-9007 in bulk?
You can submit a bulk purchase inquiry for construction, retrofit, or maintenance projects. Pricing and supply availability depend on the requested quantity and sourcing conditions.
Where can I source the 4090-9007 for a project in Riyadh?
Contact AED Arabia with your quantity requirements and project details to request a quotation for delivery to Riyadh. Confirm the expected lead time and delivery arrangements before ordering.
Where can I purchase a Simplex Signal IAM for a notification circuit upgrade?
Contact AED Arabia with the existing panel model, notification appliance requirements, and project quantity. Confirm that the 4090-9007 is compatible with your current system before purchasing.
How can I request project pricing for multiple 4090-9007 modules?
Send AED Arabia a bill of quantities listing the 4090-9007 and any associated components. Request project pricing and confirmation of availability for the full order.
Can AED Arabia help source the Simplex 4090-9007 for contractors?
Contractors and system integrators can submit sourcing inquiries with their required part numbers, quantities, and technical requirements. Supply options are subject to confirmation.
Looking for a supplier that can quote Simplex signaling components together?
Submit a consolidated inquiry to AED Arabia listing the 4090-9007, required accessories, quantities, and project location. Ask for an itemized quotation so each component can be reviewed.
Can I request a quotation for the Simplex 4090-9007 before finalizing my bill of quantities?
Yes. You can submit a preliminary quantity and project specification to request a quotation. Confirm final quantities, accessories, compatibility, and availability before placing the purchase order.
How do I contact AED Arabia to purchase the Simplex 4090-9007 Signal IAM?
Visit the AED Arabia Contact Us page and provide the model number, required quantity, project location, and control panel details. Request confirmation of pricing, availability, and delivery terms.
Where can I buy the Simplex 4090-9007 Individual Addressable Module in Saudi Arabia?
AED Arabia supports sourcing inquiries for the Simplex 4090-9007 Signal Individual Addressable Module across Saudi Arabia (KSA). Customers can request quotations for projects across Riyadh, Jeddah, Dammam, Makkah, Madinah, Al Khobar, Dhahran, Al Jubail, Taif and many cities. Contact AED Arabia to discuss pricing, bulk orders, product availability, and delivery options for your project.
Simplex 4090-9007 Individual Addressable Module in Saudi ArabiaRequest for Bulk Quotation
Looking to buy the Simplex 4090-9007 Individual Addressable Module at competitive prices for industrial facilities, construction projects, oil & gas operations, petrochemical plants, commercial buildings, or HSE and fire-safety projects in Saudi Arabia? AED Arabia provides fast quotations, competitive pricing, and reliable supply support for organizations across Riyadh, Jeddah, Dammam, Dhahran, Al Khobar, and Al Jubail. Companies and procurement teams searching for the best Simplex 4090-9007 Individual Addressable Module in Saudi Arabia, bulk fire alarm system procurement, or a trusted Simplex supplier can contact our team for expert assistance, competitive quotations, and fast delivery across KSA.
We Serve:
Industrial facilities and manufacturing companies across Saudi Arabia
Construction companies and project contractors in Riyadh and Jeddah
Oil & gas and petrochemical facilities in Dhahran and Al Jubail
Commercial buildings, offices, hotels, and warehouses
Corporate HSE, fire-safety, and facility management teams in Al Khobar and Dammam
Hospitals, laboratories, schools, and critical infrastructure projects
Simplex 4090-9007 Individual Addressable Module Part Numbers / Available ConfigurationsOrdering Information
SKU
Product / Configuration
4090-9007
Simplex Signal Individual Addressable Module (Signal IAM)
4090-9801
Optional trim plate for semi-flush mounting
4090-9802
Optional trim plate for surface mounting
4090-9116
IDNet Communications Isolator
4090-9122
IDNet Isolator2
4098-9766
IDNet Isolator2 Base
4081-9008
10 kΩ, ½ W end-of-line resistor for Class B NAC output
2081-9044
Overvoltage protector for specified applications
