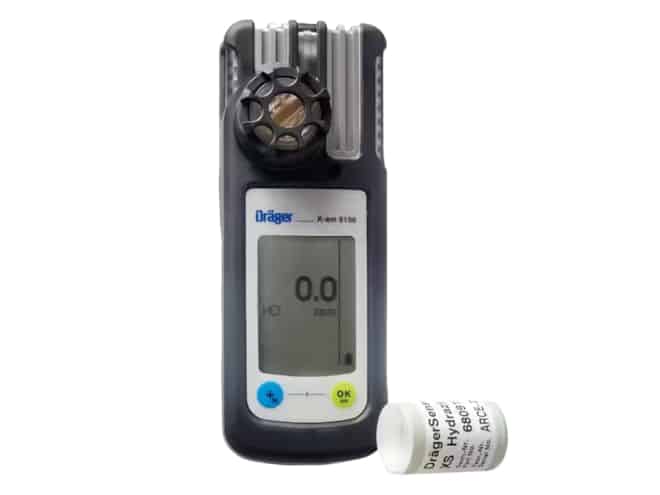

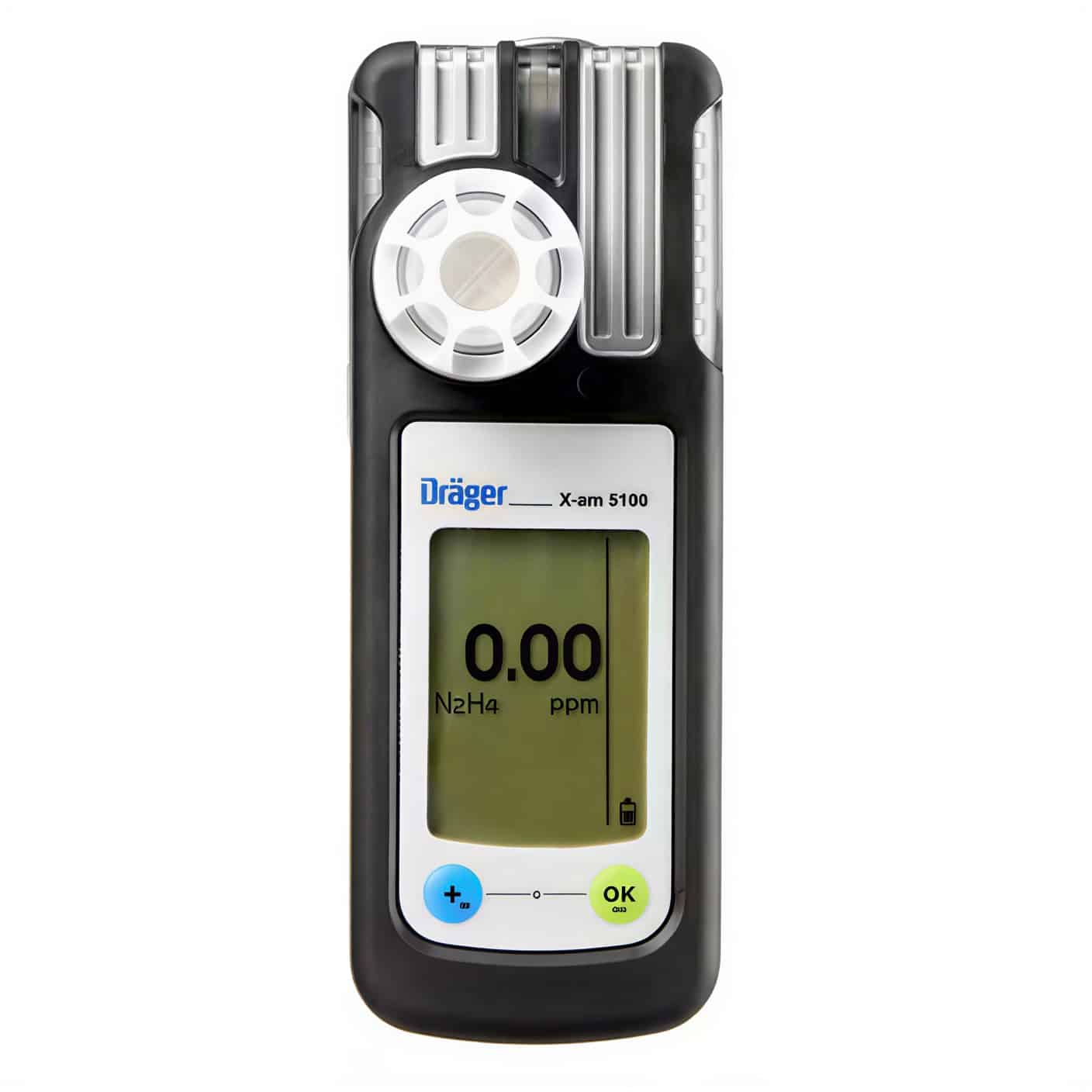

The Drager X-am 5100 is a portable, high-performance gas detector engineered for monitoring single, highly toxic gases such as hydrogen fluoride (HF), hydrogen chloride (HCl), hydrogen peroxide (H₂O₂), and hydrazine (N₂H₄). It plays a critical role in industries like chemical production, pharmaceuticals, and water treatment, where precise detection of these hazardous gases is vital for safety. Compact and lightweight, the X-am 5100 is built for tough conditions with an IP67 rating that protects against dust and water. Its advanced electrochemical sensors provide high sensitivity, ensuring fast and reliable detection even at very low gas concentrations.
The Drager X-am 5100 is a high-performance portable gas detector designed for monitoring single, highly toxic gases such as hydrogen fluoride (HF), hydrogen chloride (HCl), hydrogen peroxide (H₂O₂), and hydrazine (N₂H₄). It is widely used in industries like chemical manufacturing, pharmaceuticals, and water treatment, where accurate detection of these hazardous gases is essential for worker safety.
Engineered for durability, the X-am 5100 is compact, lightweight, and IP67-rated, making it resistant to dust and water for reliable use in demanding environments. Its advanced electrochemical sensors provide high sensitivity, ensuring fast and precise detection even at very low concentrations.
With a clear display, intuitive interface, and glove-friendly operation, the X-am 5100 is simple to use in the field. Multiple alarm options—audible, visual, and vibration—deliver immediate warnings of dangerous gas levels, while integrated data logging supports compliance and exposure tracking.
Features of Drager X-AM 5100 Single Gas Detector
Easy to Use: Lightweight, smartphone-style design with simple two-button operation.
Reliable Safety Alerts: Detects HF, HCl, H₂O₂, or hydrazine with 360° visual, audible, and vibration alarms.
Fast, Accurate Readings: Direct gas entry ensures quick sensor response and precise results.
Rugged Design: Shock-resistant sensors with rubber boot for impact and EMI protection.
Scalable Monitoring: Works with Drager X-zone 5500, connecting up to 25 units for wide-area coverage.
Drager X-AM 5100 Single Gas Detector Product Details
Brand :
Drager
Model # :
5100
Detects :
H2O2, HF / HCL, Hydrazine
Dimensions (W x H x D)
48 x 130 x 61 mm; 1.89 x 5.12 x 2.4 inches
Sensor Range :
Depends on sensor. E.g. HF/HCl: 0-30 ppm; H₂O₂: 0-20 ppm; Hydrazine: 0-3 ppm
Series :
X-am 5100 Single-Gas Detector
Replaceable Battery :
Yes
Battery Chemistry :
Alkaline or NiMH rechargeable (standard or high capacity
Standards :
ATEX; IECEx; c-CSA US; CE; GOST (EAC)
Dual sensor:
Turns a single-gas detector into a two-gas detector (optional)
Minimum Operating Temperature :
−4 °F
Maximum Operating Temperature :
122 °F
Minimum Order Quantity :
1
Country of Origin :
Mexico
Specifications of Drager X-am 5100 Single Gas Detector
Weight :
220 g
Temperature :
-20°C – 50°C
Humidity :
10% to 95%
Alarms :
Indicates if alarms occurred during operation
Typical Battery Life :
rechargable
Event Logging :
Data logger retrievable via IR interface; >1000 h logging at 1 value per minute
Degree of protection (IP class):
IP 54
Warranty:
2-year warranty on the monitor and 1-year warranty on the sensors (excluding consumables like batteries)
Additional Information
Part Number
X-AM 5100
Usually ships in
2-3 Days
Manufacturer
Drager
Downloadable
Single Gas Detector Draeger X-AM 5100
Single Gas Detector Draeger X-AM 5100 Datasheet
Single Gas DetectorDraeger X-AM 5100 Manual
